Chapter 4-3. Usage of XGen Web UI

XGen now is shipped with a new interface in Web UI. For quick start the webui, please refer to Quick Start. Basically, just simply run command below in your XGen container:

XGen webserver

# or specify a port

XGen webserver --port 8080

By default, XGen will randomly choose free port from 19001 to 19200. Please ensure the port is not occupied by other process and accessible from your browser.

If logged with ssh shell, please remember to add -L option to forward the port to local machine. Because the webui is running in container, it is not accessible from outside of the container. For example, if you want to forward port 8080 to local machine, run command below:

ssh -L 8080:localhost:8080 user@host
# the command format is
# ssh -L <localport>:<remotehost>:<remoteport> user@host

Then open your browser and visit http://localhost:8080 to access the webui.

Home

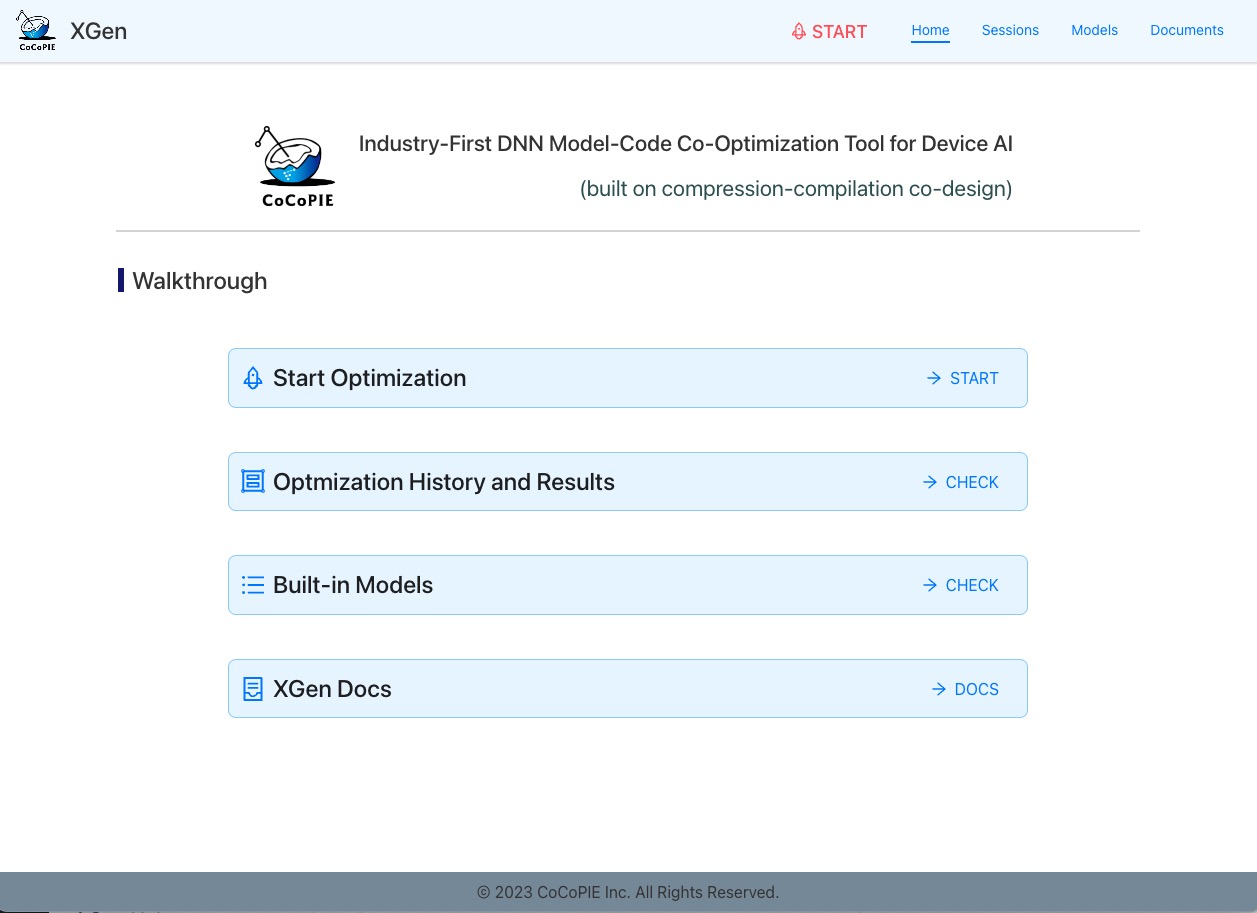

Home page offers shortcuts to navigate to other pages.

• Start Optimization: You can select an AI model and click the “Start Optimization” button to begin the optimization process.
• Optimization History and Results: View previous optimization history and the results of the optimization.
• Built-in Models: View the built-in models provided by XGen. You can select a model and click the “Download” button to download the model’s code maintained by XGen.
• XGen Docs: Link to the XGen documentation.

Click check button to go to corresponding page.

Sessions

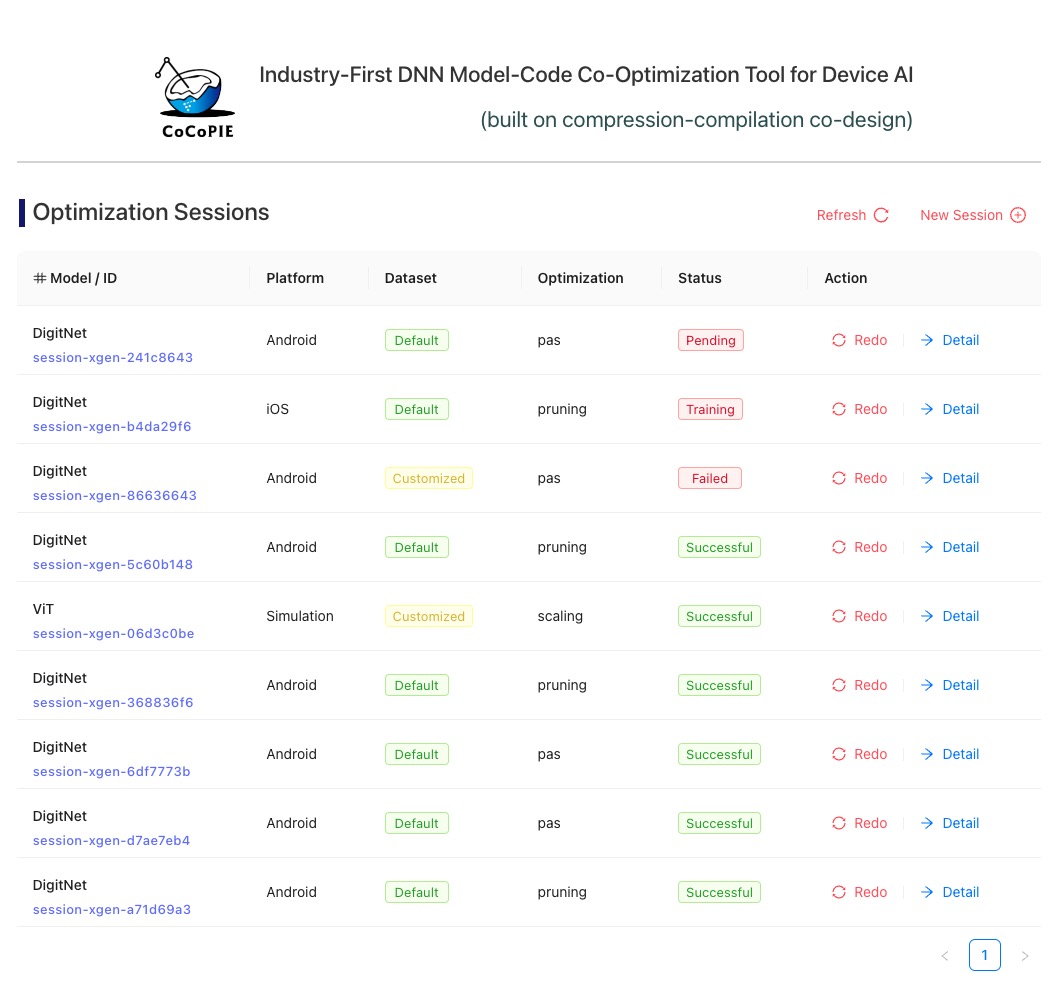

Go to this page by clicking Optimization History and Results button in home page or Sessions button in the navigation bar on top of the site. This page shows the history of the optimization process. You can see the status of each optimization process. If the optimization process is finished, you can see the final result of the process.

There are several status of each optimization.

• Pending: The optimization process is waiting for resource to start.
• Successful: The optimization process is finished successfully.
• Training: The optimization process is running.
• Failed: The optimization process is failed.

You can click the link under each Model / ID then will be navigated to detail page of this optimization.

Optimization Page

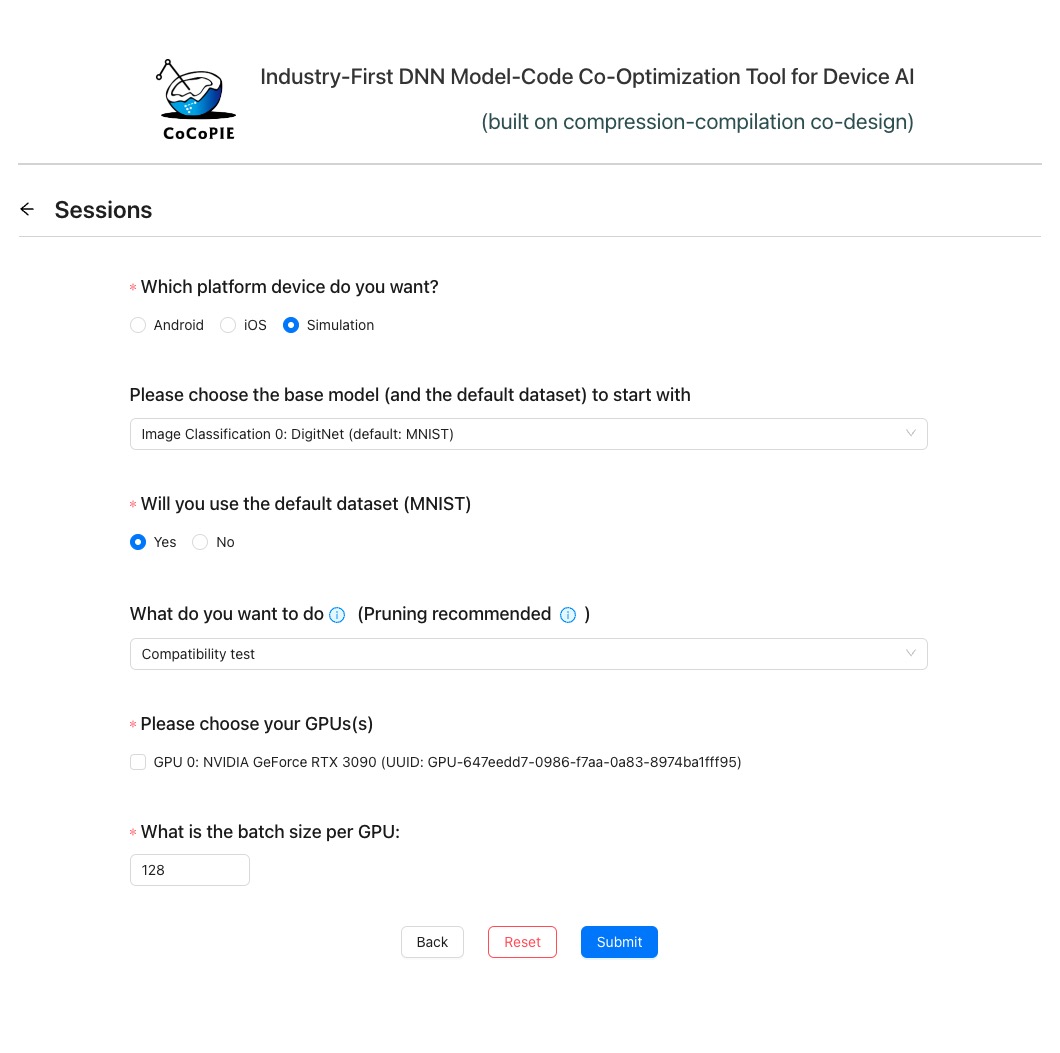

Go to this page by clicking Start Optimization button in home page or Start button in the navigation bar on top of the site. This page is used to start a new optimization process.

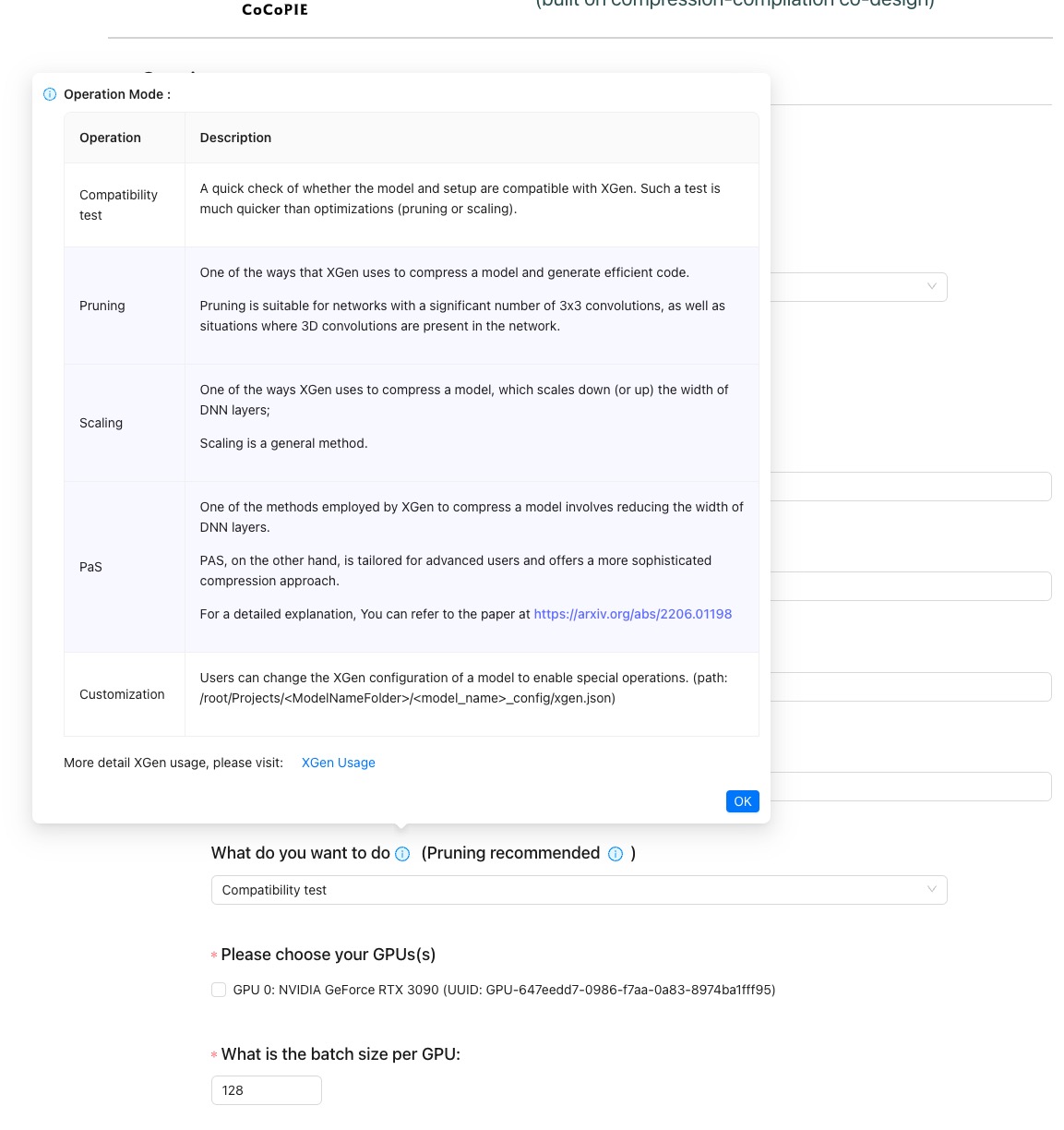

This page is a large dynamic form. Answer of each question will take effect on questions below. Some of the questions are marked with an 'i' icon, which means there is a tooltip for this question. Hover on the icon to see the tooltip.

Just simply full fill the form as needed. Below is an example

Then click Submit button to start the optimization process. The optimization process will be running in background. You can close the browser or navigate to other pages. The process will not be interrupted. But please note that please do not exit the XGen container while the optimization process is running. If you exit the container, the process will be terminated.

Optimization Detail Page

After clicking the Submit button in the optimization page, you will be redirected to the optimization detail page. This page shows the progress of the optimization process.

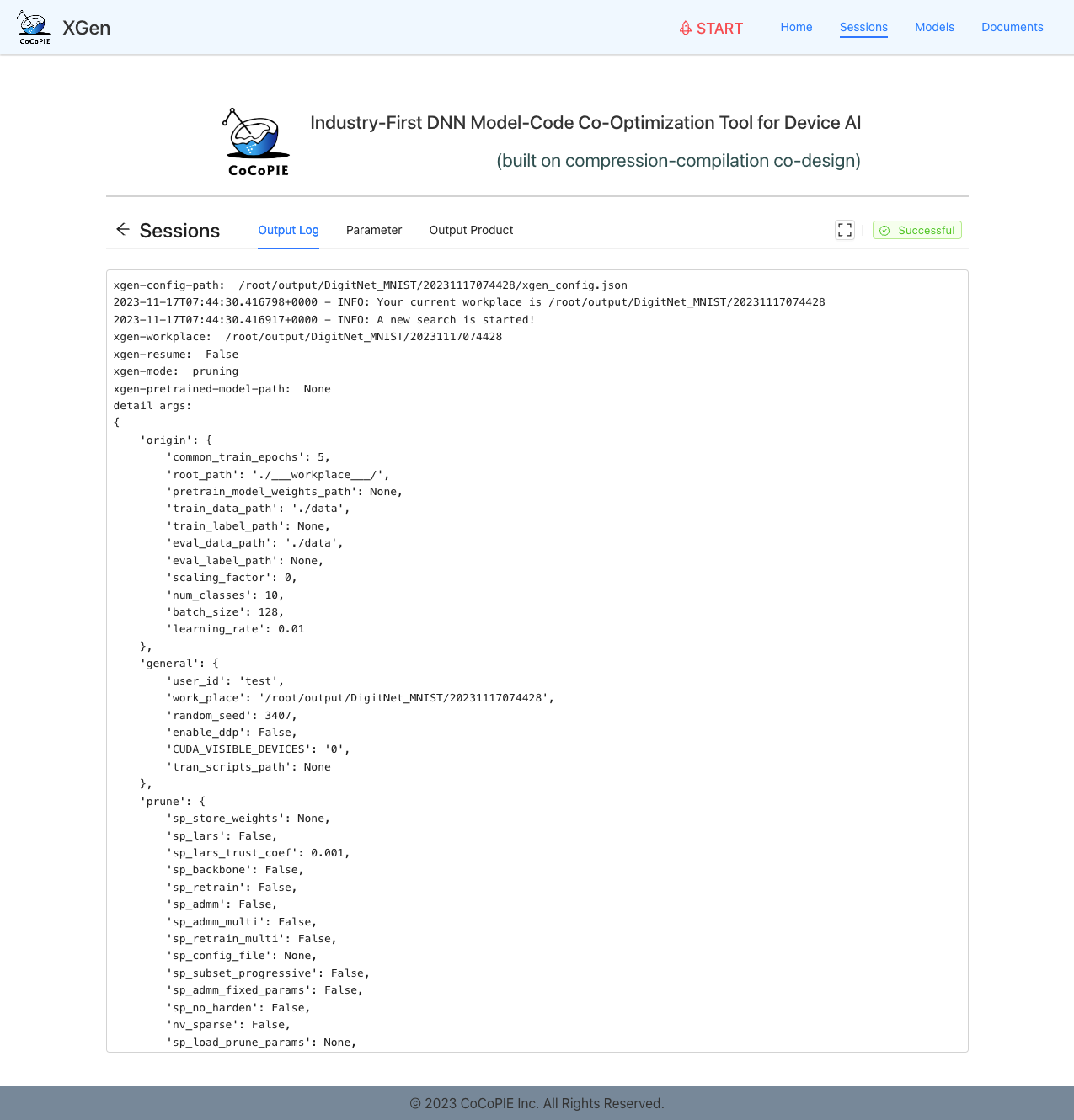

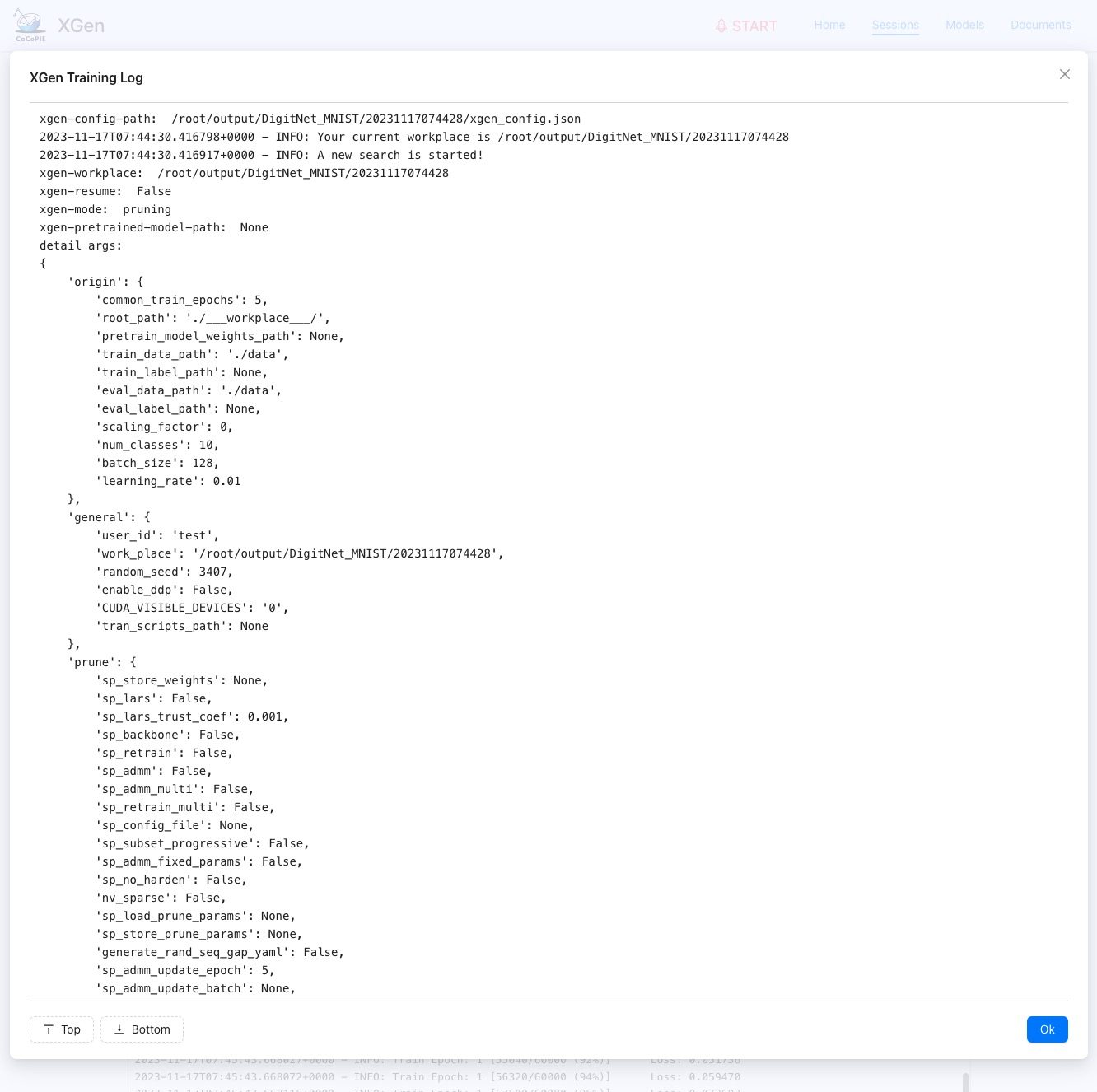

There are three tabs in the page. By default, the Output Log tab is selected. This tab shows the output log of the optimization process. You can see the progress of the optimization process here with automatically updated log. Here is a small square button on the right of the tabs. Click it will navigate to a full screen log page.

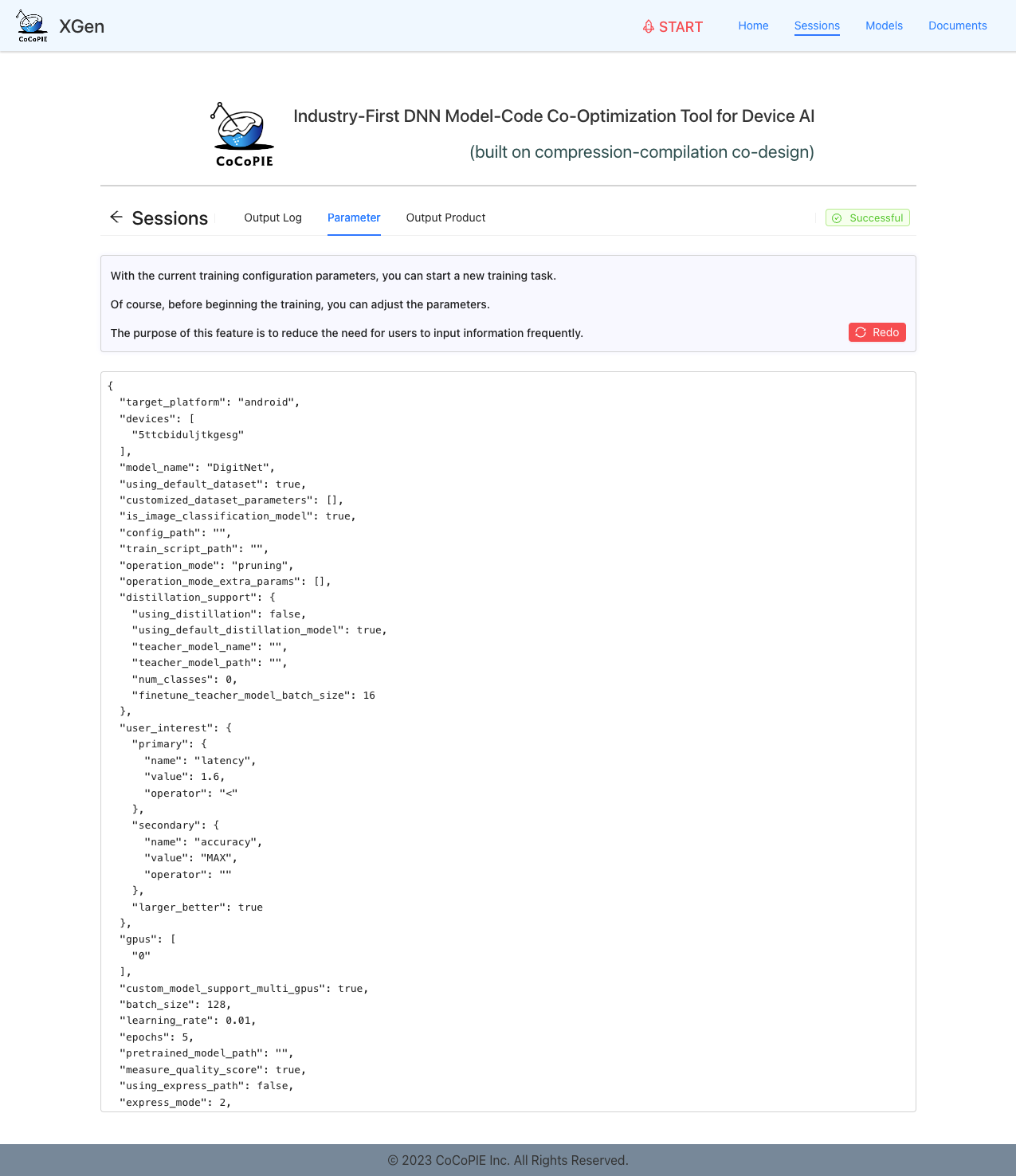

If interested in exact parameter details, please refer to Parameter tab. This tab shows the parameters used in the optimization process. You can see the parameters used in each iteration.

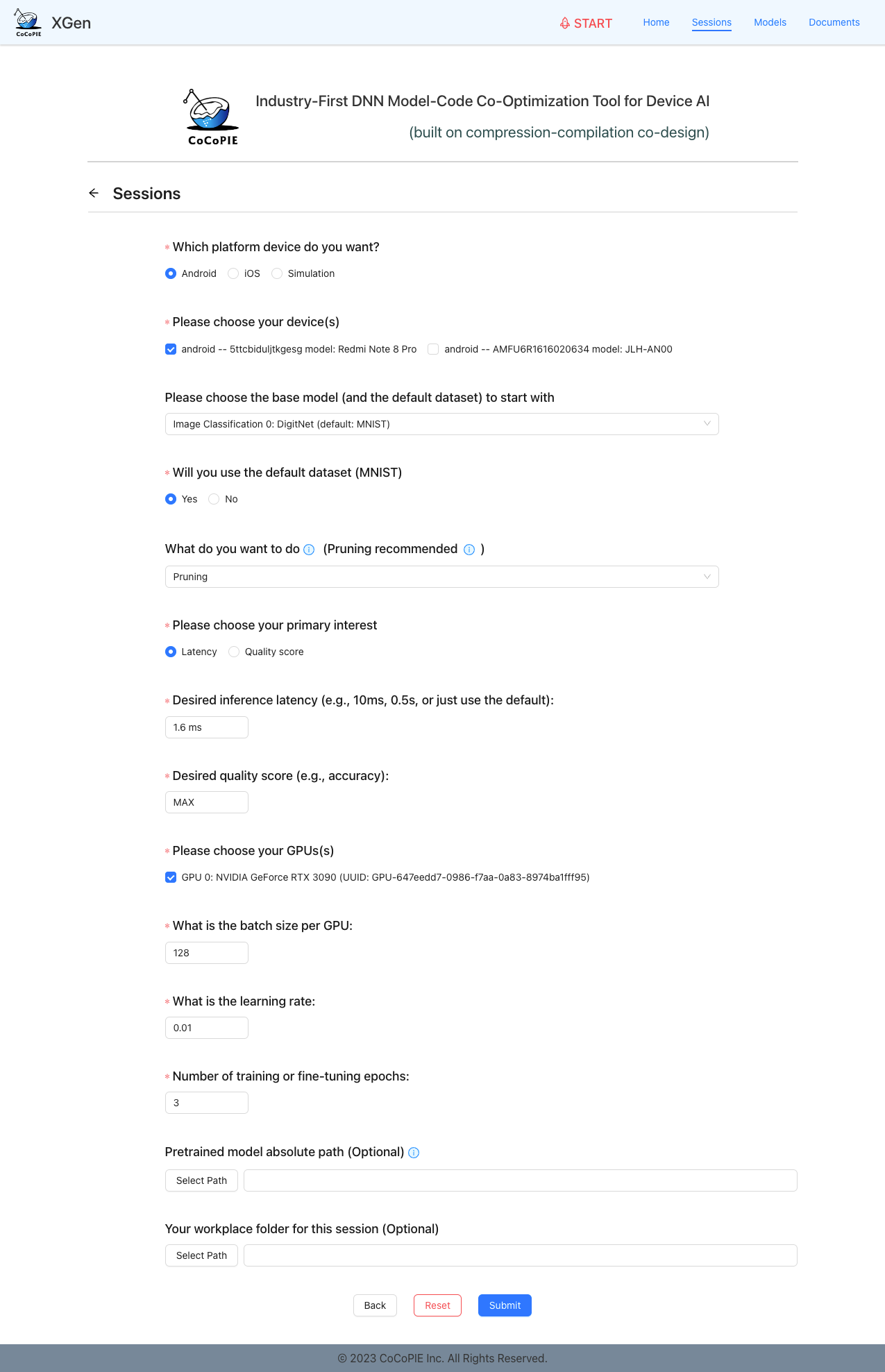

What's more, you can click redo button in the parameter page to prefill the optimization form with the parameters used in the iteration. Then you can start a new optimization process with the same parameters or just simply change it a little bit for another optimization try.

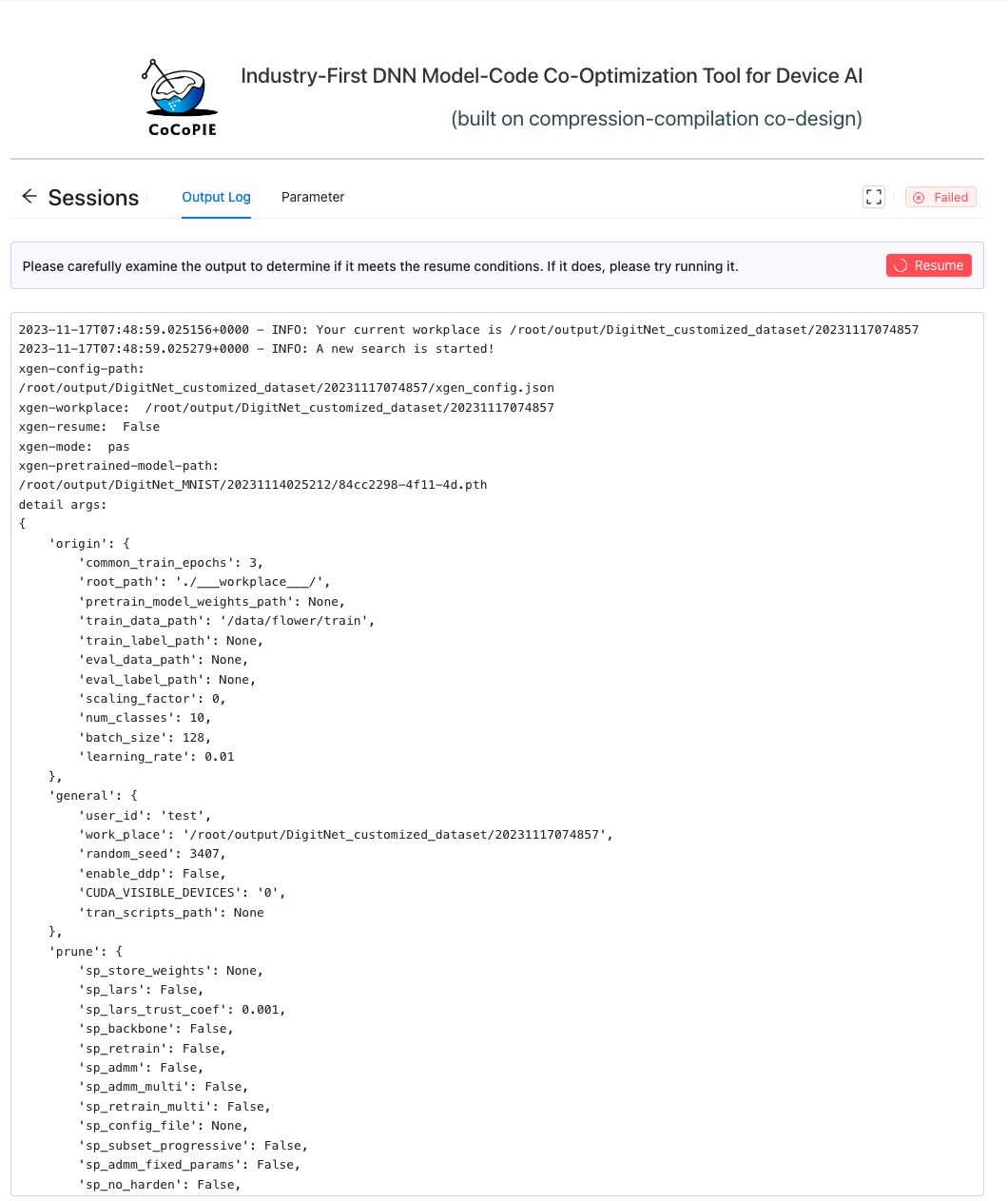

If the optimization process is finished, flag on the top right will turn to green with word success. Otherwise, it will be red with word failed. There are many reasons that may cause the optimization process failed. You can check the log to find the reason and fix it. Then click the resume button to resume the optimization process.

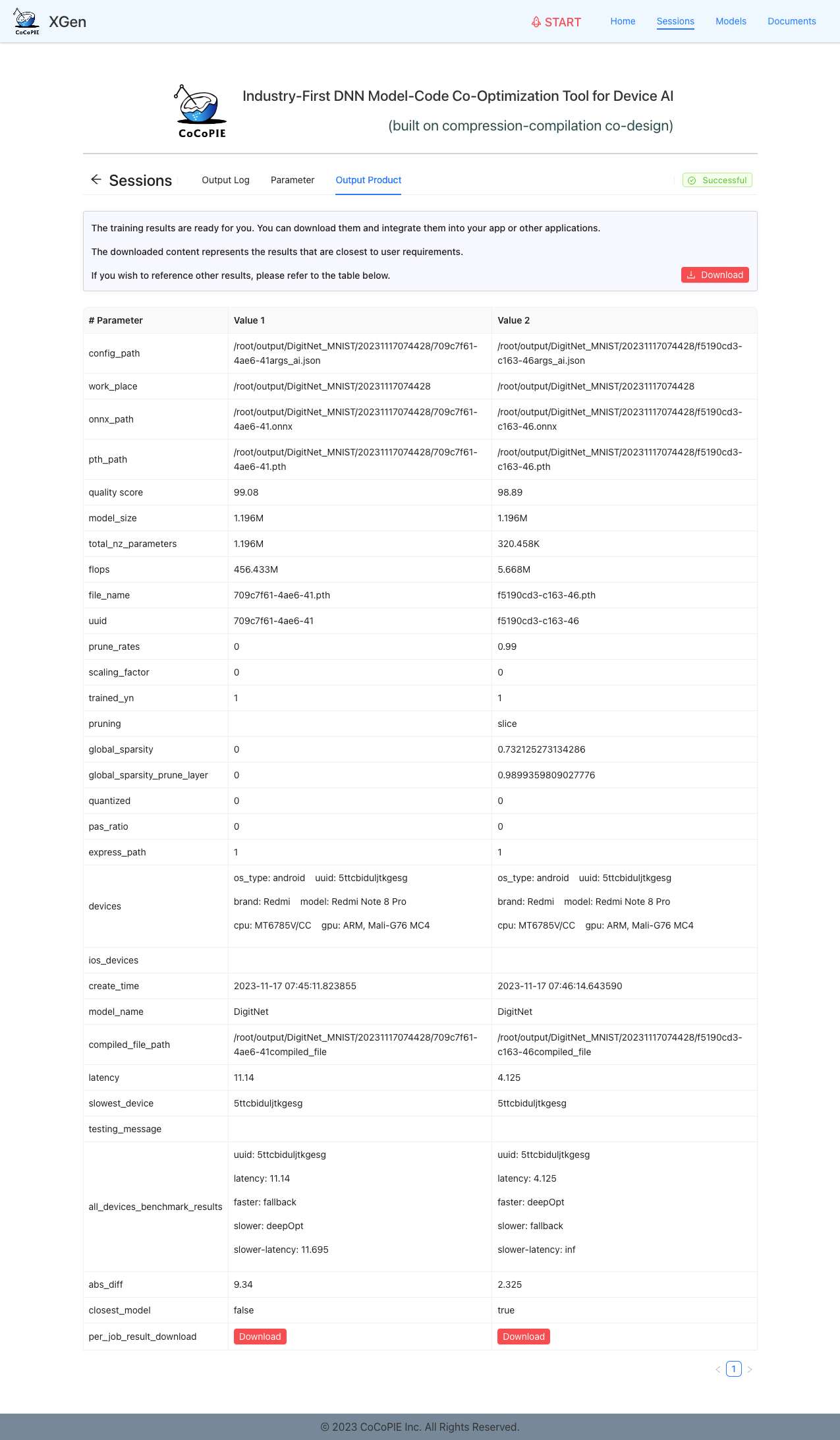

If the optimization is succeeded. you can see the final result in the Output Product tab.

You can download the output product (best result) by clicking the top right red Download button. The output product is a *.tar.gzip file. If interested in result of specific iteration of optimization, Please click download button at the end of related column in the output form.

For usage of the output product, please refer to Results

Model List Page

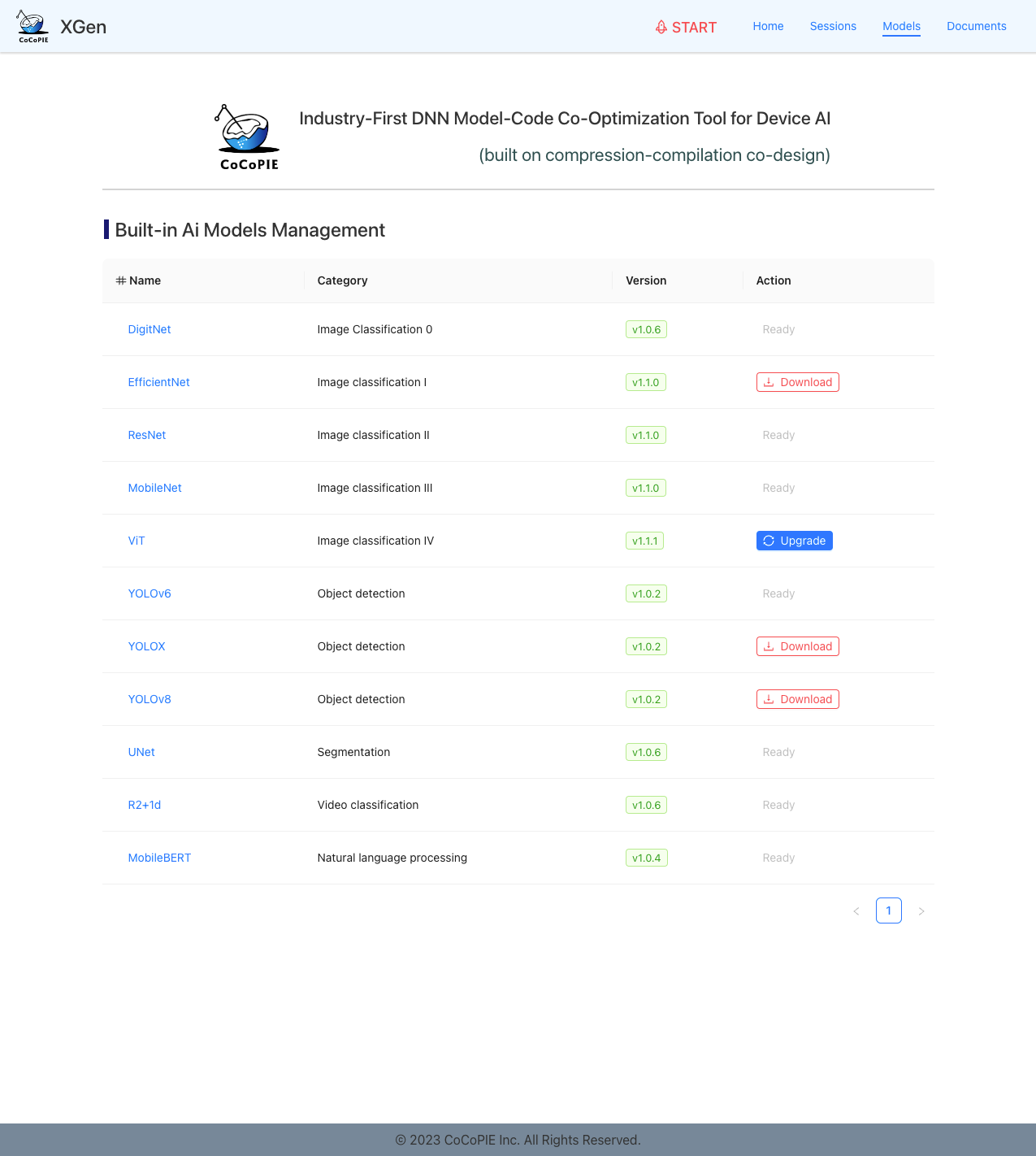

Go to this page by clicking Built-in Models button in home page or Models button in the navigation bar on top of the site. This page shows the built-in models provided by XGen. You can select a model and click the Download button to download the model’s code maintained by XGen.

Please download the models as needed. For downloaded models, XGen will check the update of the model code every time you start a new optimization process. If there is a new version of the model code, The Action column will show a Upgrade button. Click it to upgrade the model code.

XGen Docs

Go to this site. This is the link to the XGen documentation.
